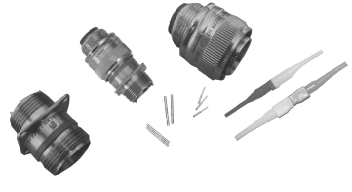

Pictures for reference only, please check the datasheet
ZH83723 series
- ZH83723 series Details
- Packing And Shipping
- Payment Method
- Quality Control
Product Introduction
This series of products adopts two connection and separation methods:
threaded connection and bayonet connection. This electrical connector
has the advantages of being three-proof, vibration-resistant and shock-resistant.
The plug has a unique self-locking mechanism to prevent the mating connector
from loosening, and the contact body adopts crimping type (removable).
The interface seal ensures reliable end face sealing after the connector is combined.
The self-sealing wire body with three convex rib holes can provide reliable
sealing and prevent moisture from entering the interior of the electrical connector.
Technical performance
1.Operating temperature: -65℃ to 260℃
2. Rated current: 7.5A 13A; 23A;
3. Contact resistance: 7.4mΩ; 3.8mΩ; 2.2mΩ;
4. Insulation resistance: ≥200MΩ (at normal high temperature)
5. Test voltage: 1500V (at room temperature)
6. Mechanical life: 500 times of plugging and unplugging.
类别 | 壳体材料 | 表面处理 | 电连续性 | 温度等级 | 耐盐雾 |
W | 铝合金 | 镀军绿镉 | 2.5mΩ | -65℃～+175℃ | 500h |
K | 不锈钢 | 钝化 | 10mΩ | -65℃～+200℃ -65℃～260℃ | 500h |
Y | 不锈钢(气密封) | 电抛光 | 10mΩ | -65℃～+200℃ -65℃～260℃ | 500h |
TA | 钛合金 | 无 | 10mΩ | -65℃～+200℃ -65℃～260℃ | 500h |
