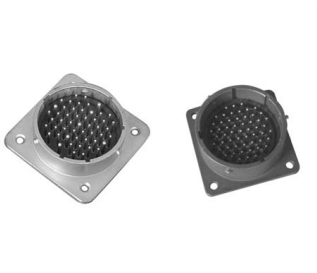

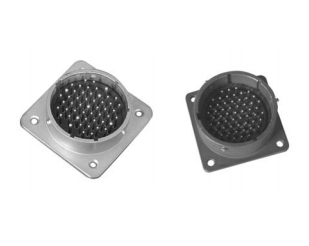

Pictures for reference only, please check the datasheet
MIL-C-26482G
- MIL-C-26482G Details
- Packing And Shipping
- Payment Method
- Quality Control
Product Introduction
This series of products meets the requirements of (US standard
MIL-C-26482G,industry standard HB6-77-83, and can be used
interchangeably with plug series ZH8525 with the same housing
number and the same number of holes. The K-type contact is
connected by, and the K-F type contact is connected by
welding, which is suitable for the rapid and reliable connection
and disconnection of the circuits of aircraft electrical equipment and
radio equipment
Technical performance
Rated voltage: 500V (AC-50Hz)
Rated current: 7.5A
mbient temperature: -55℃~125℃
Relative humidity: 92%~95% at 50℃
Atmospheric pressure: .2KPa
Vibration: Frequency 10~2000Hz, acceleration up to 147m/s
Oil impact:eleration up to 490m/s2
Constant acceleration: Up to 147m/s2
Salt spray resistance: Complies with GJB50
Contact resistance: ≤0.005Q
Insulation resistance: ≥1000MQ (at room temperature) 3100MQin humid heat)
Dielectric strength: 1500V 50Hz (at room temperature) 1125V 50Hz ( humid heat)
Sealedness: When the pressure difference between the inside and outside media is 101KPa, the air leakage rate should not exceed 40Pa/s
Mechanical life: 500 times of plugging and unplugging
Enterprise standard number: Q/3E59-8

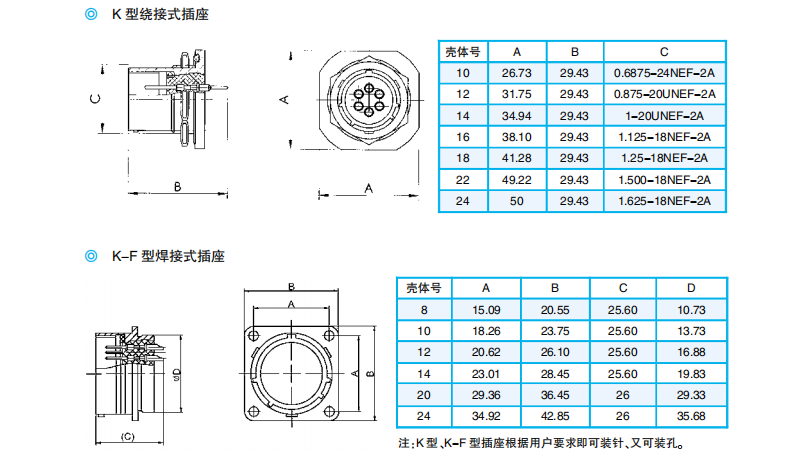

Connector shape and installation dimensions
